wallace-tree-multiplier

8-bit Wallace Tree Multiplier implementation on GPDK45nm

Find our official ECE 559 report here.

A Wallace Tree Multiplier (WTM) accelerates integer multiplication by reducing partial-products in parallel using carry-save-adder (CSA) chains, followed by a final ripple-carry-adder (RCA) stage. This project successfully implemented an 8-bit WTM using the inversion property to minimize total area. Post-layout validation using the GPDK45nm process library verified that the design met all core requirements with

  • a worst-case delay of 1.742 ns at 1V and 1.3948 ns at 1.1V, and
  • an energy consumption of 320.712 fJ at 1V and 395.945 fJ at 1.1V

for the worst-case delay. The exploitation of the inversion property also reduced the overall transistor count by 298, leaving the final chip area measuring at 3305.51 um^2. Parasitic extraction resulted in near doubling of the worst-case delay and energy consumption results, but the metrics remained well within the specifications, having a positive slack of

  • 0.758 ns & 529.288 fJ at 1V, and
  • 1.1052 ns & 454.055 fJ at 1.1V.

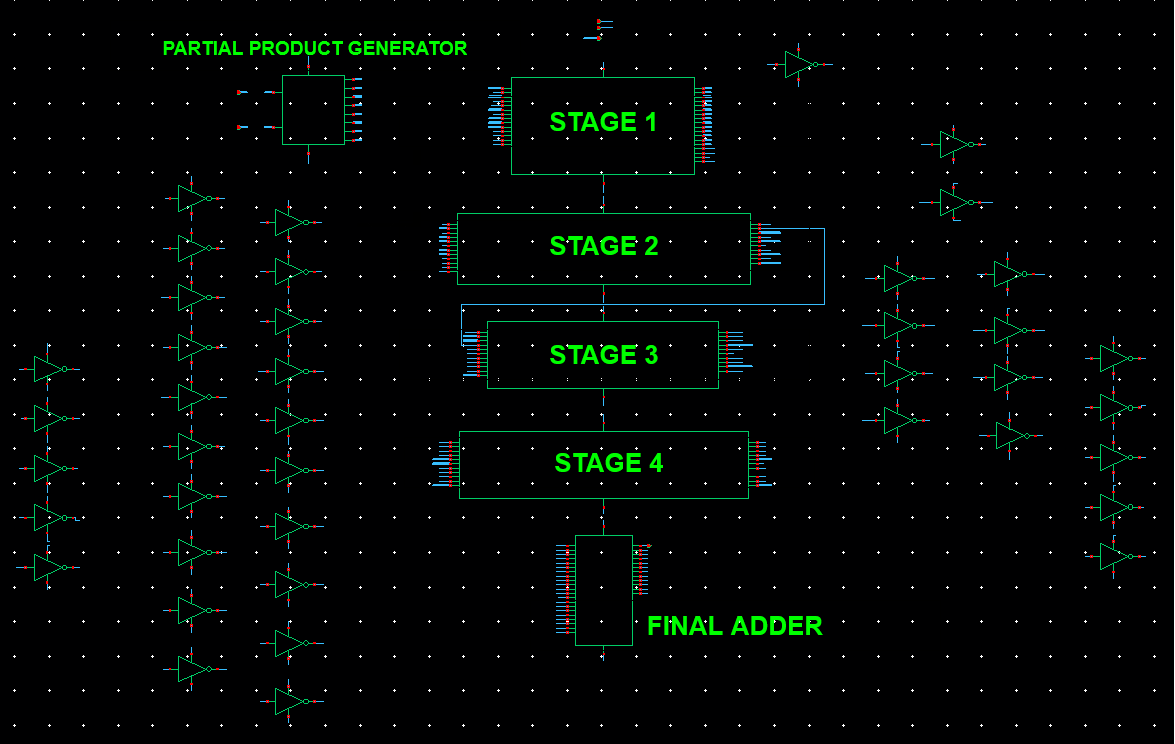

WTM Schematic

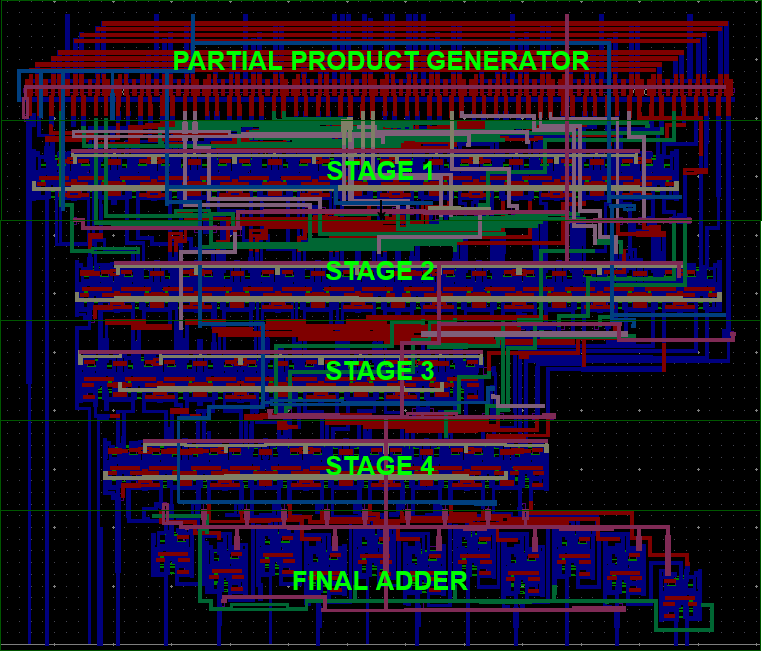

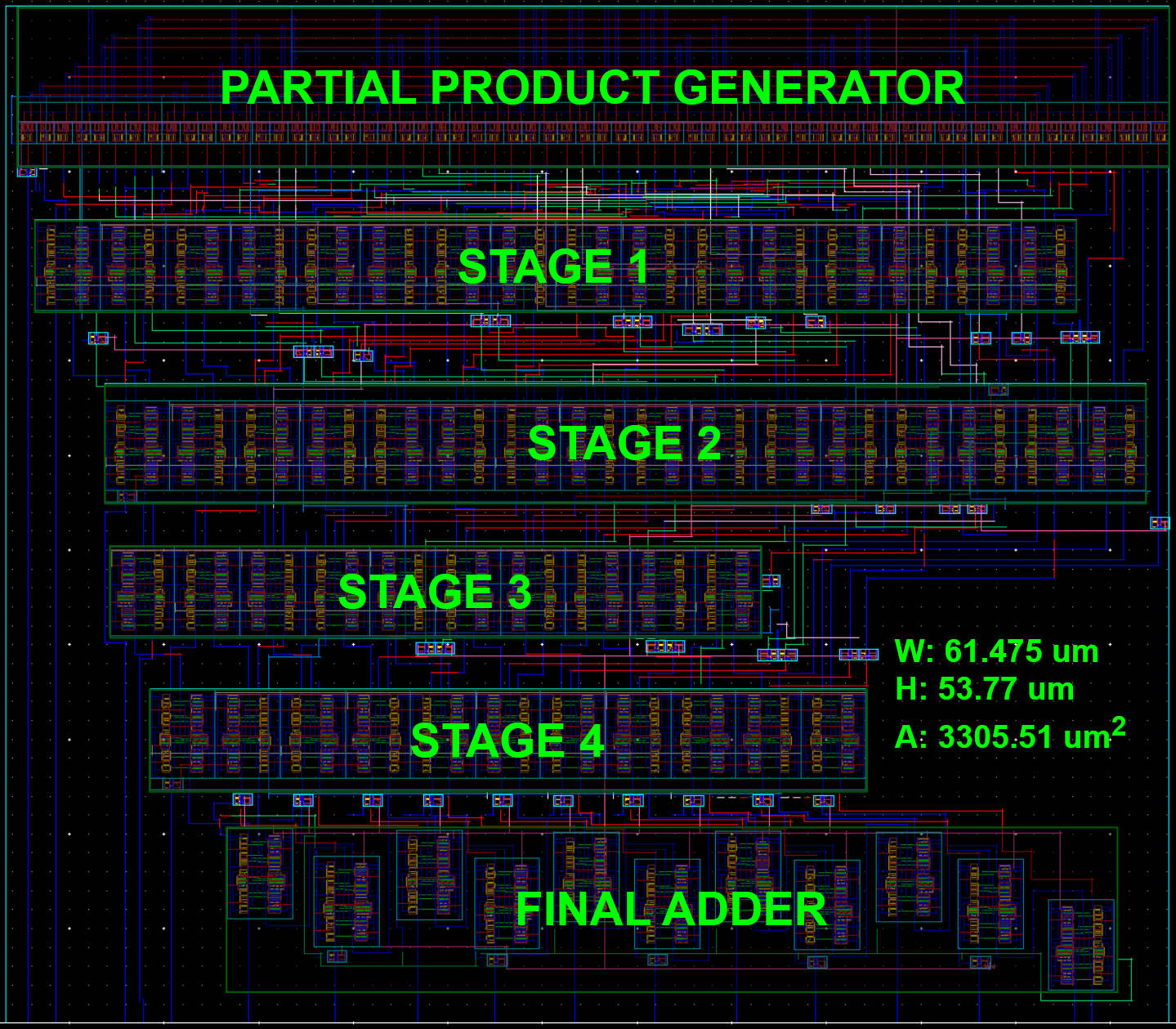

WTM Layout vs Post-Extraction Layout

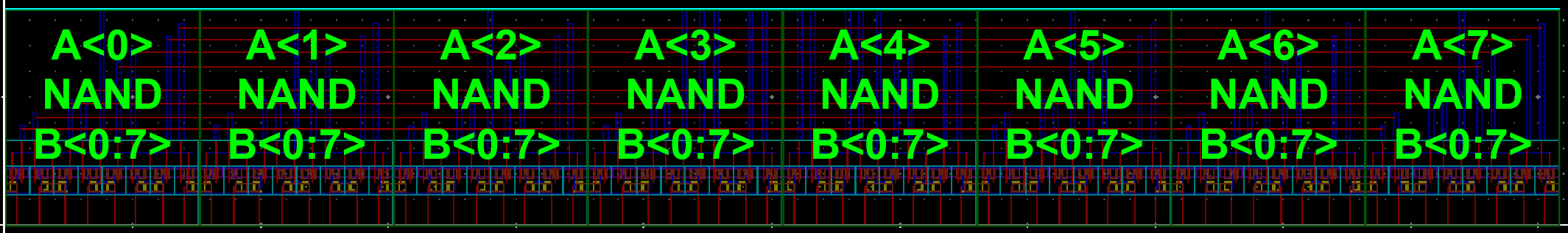

Partial Product Generation

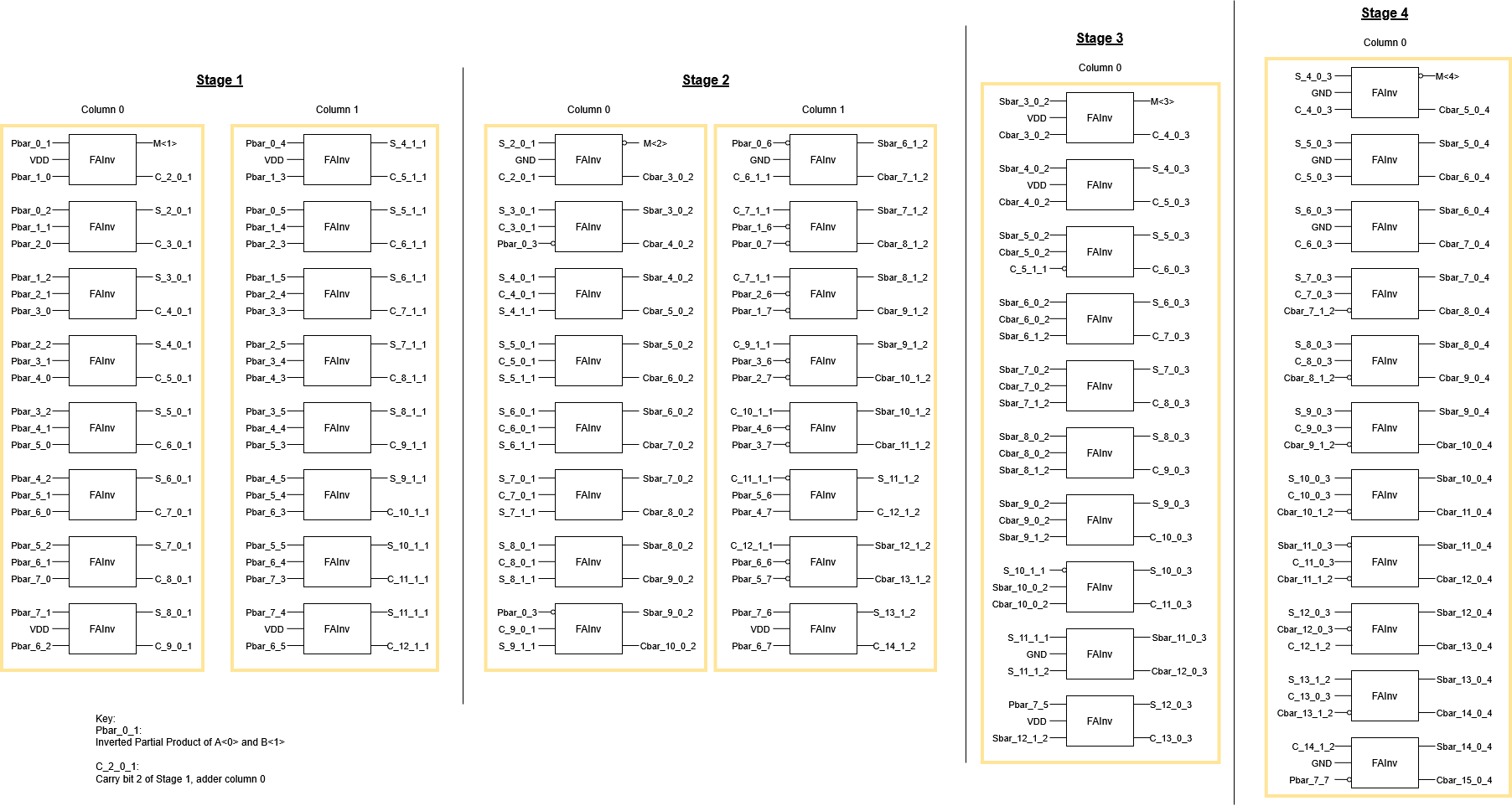

Reduction Stages Diagram

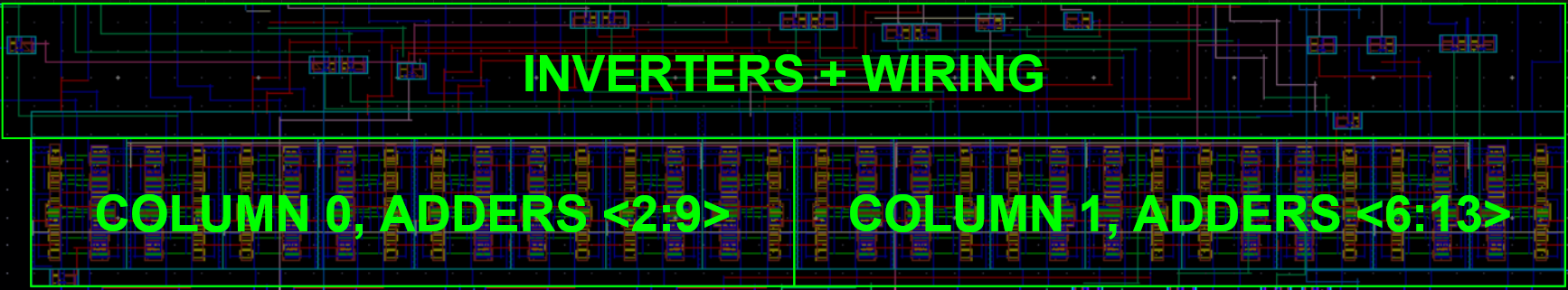

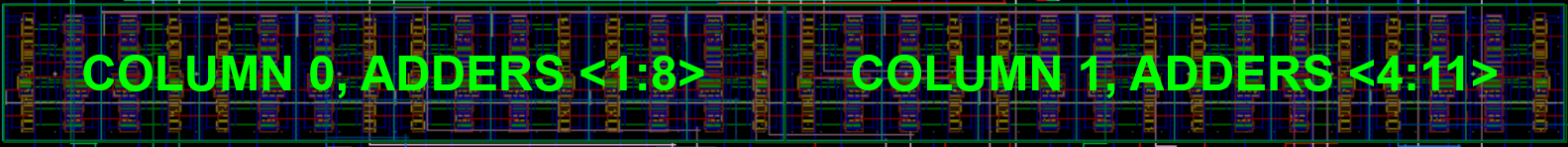

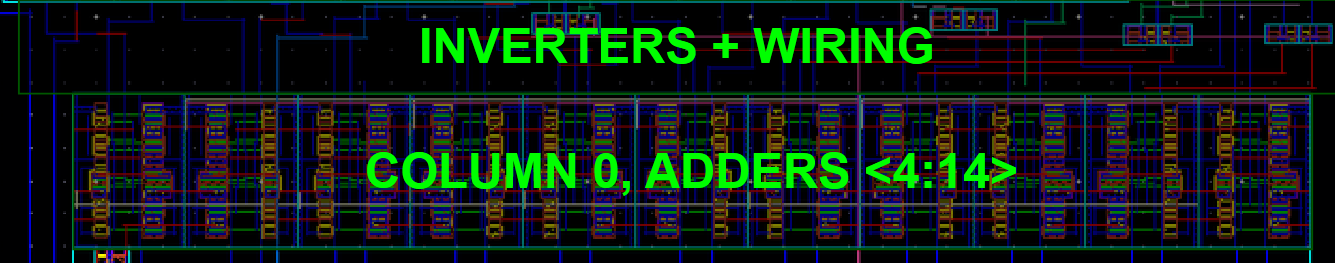

Reduction Stages Layout

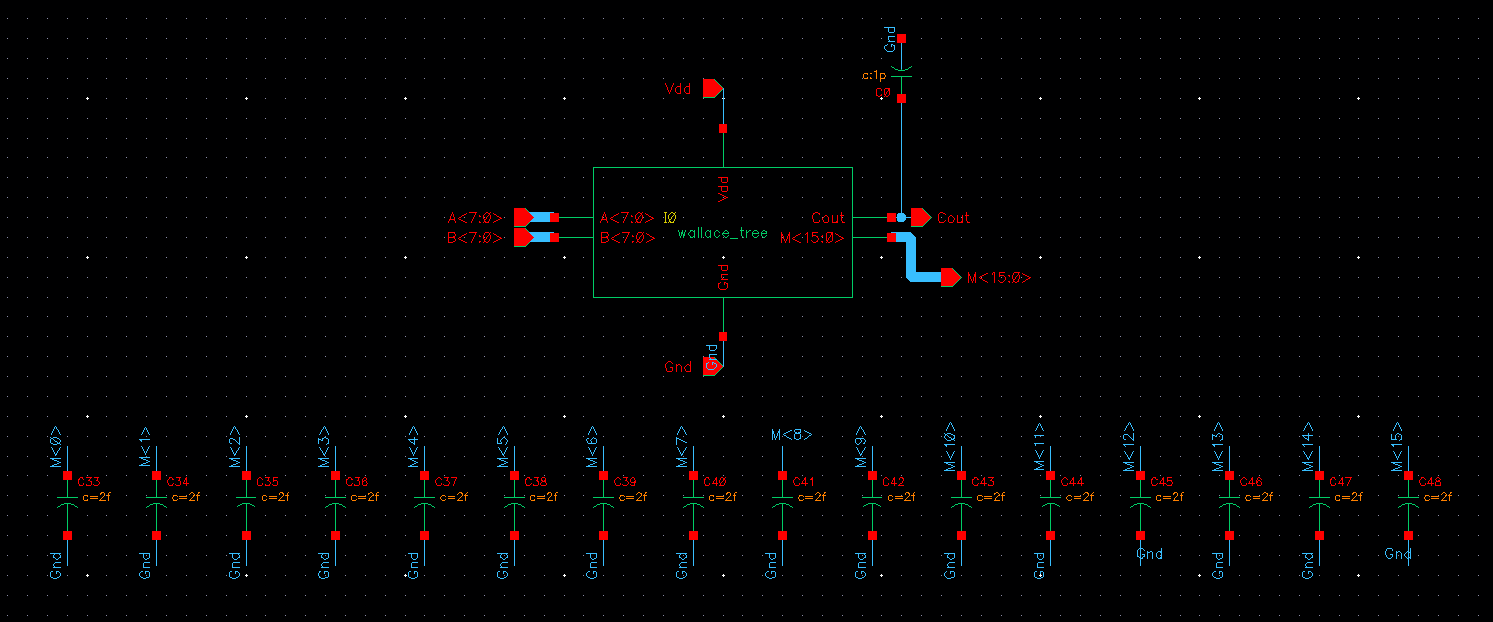

WTM Testbench
Voltage (V) Schematic Delay (ns) Layout Delay (ns) Delay Delta (ns)
1.0 0.8164 1.742 +0.9256
1.1 0.6498 1.3948 +0.7450
Worst-Case Delay
Voltage (V) Schematic Energy (fJ) Layout Energy (fJ) Energy Delta (fJ)
1.0 363.920 741.147 +377.227
1.1 450.868 907.942 +457.074
Worst-Case Energy
Cell Type Num. Inst. Transistors / Inst. Total Transistors
FAInv 64 24 1536
Inverter 43 2 86
NAND 64 4 256
Inverted Total — — 1878
FA 64 28 1792
AND 64 6 384
Non-Inverted Total — — 2176
Transistor Count Breakdown
